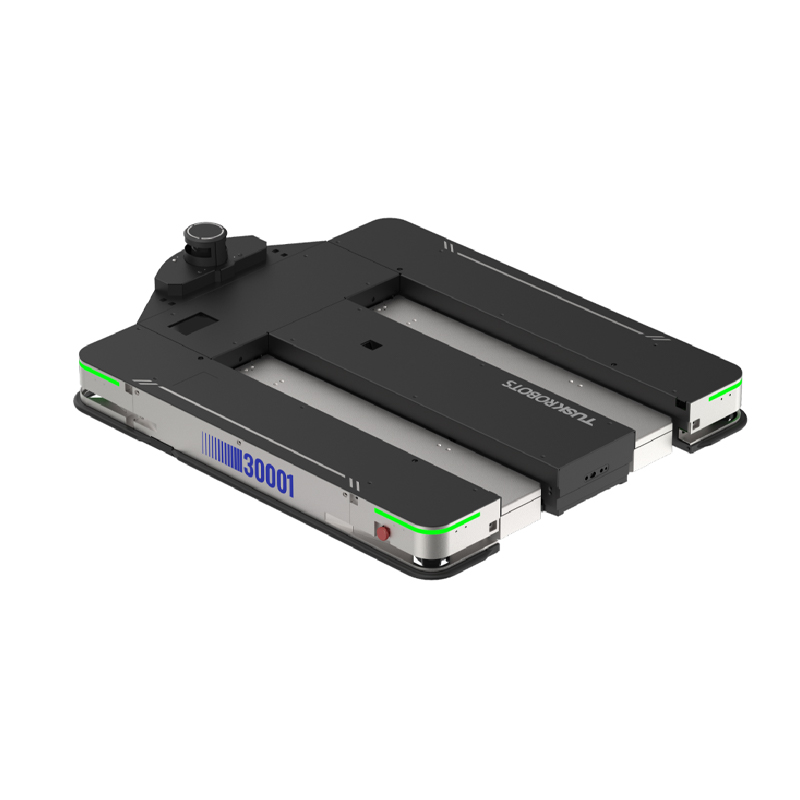

E10-SLAM（SLAM + DM Code Dual Navigation Version）
Charging Station
Automotive Electronics Industry
Automotive Electronics Industry
Consumer goods Industry
Consumer goods Industry
Pharmaceutical Industry
Pharmaceutical Industry
New Energy Industry
New Energy Industry
Logistics Industry
Logistics Industry
3C Industry
3C Industry
Social Recruitment
Campus Recruitment

Language

+86-400-8808-310
Home / Product / Charging Station

Charging Station

  • Charging Station
  • Charging Station

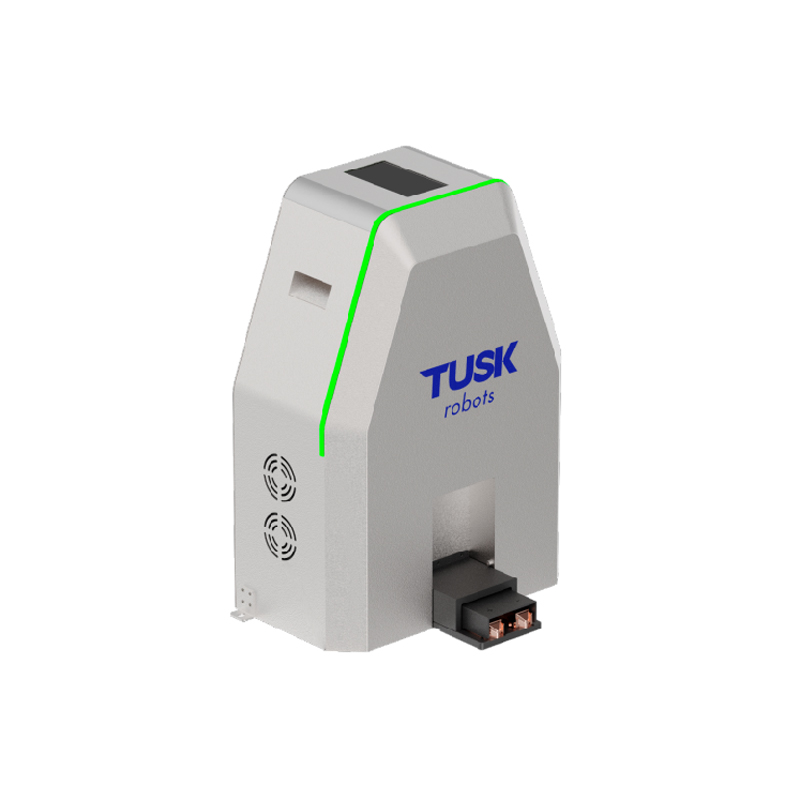

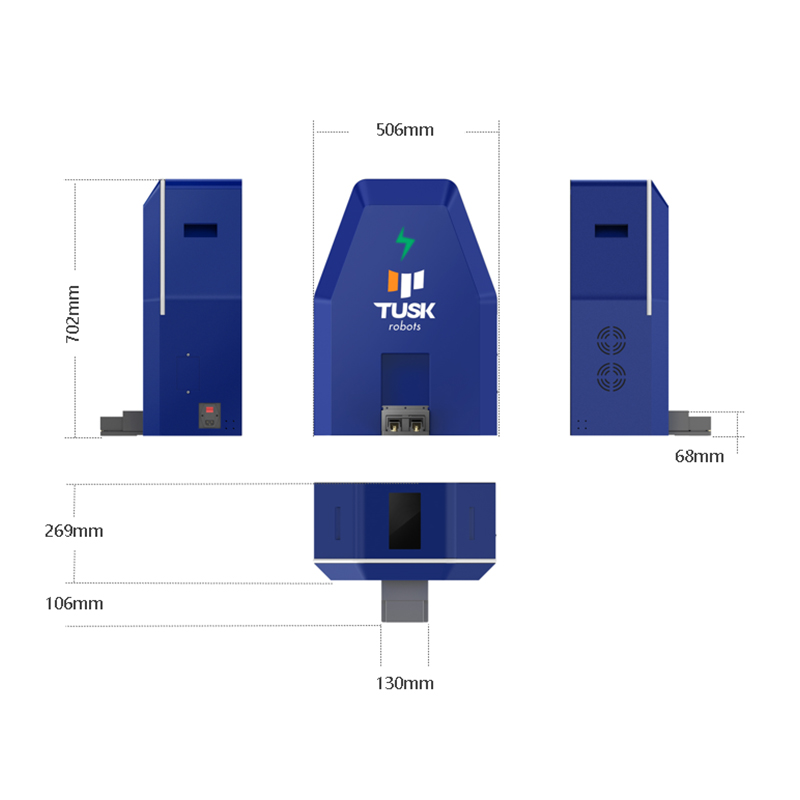

Charging Station

  • Intelligent Charging ManagementSupport wireless communication with unified system control of multiple devices; Fast charging with high current and constant current; Dynamic current charging supports real-time charging power statistics.
  • Convenient OperationDisplay the charging status in real time; Touch and human-machine interaction supports hand-automatic mode switching.
  • Safety GuaranteeWith functions of charge identification, access detection, disconnection protection, real-time temperature monitoring, intelligent heat management, anti-electrode exposure and object falling prevention, over-current and over-voltage protection and it has high flame retardant grade.
Contact Us

Project

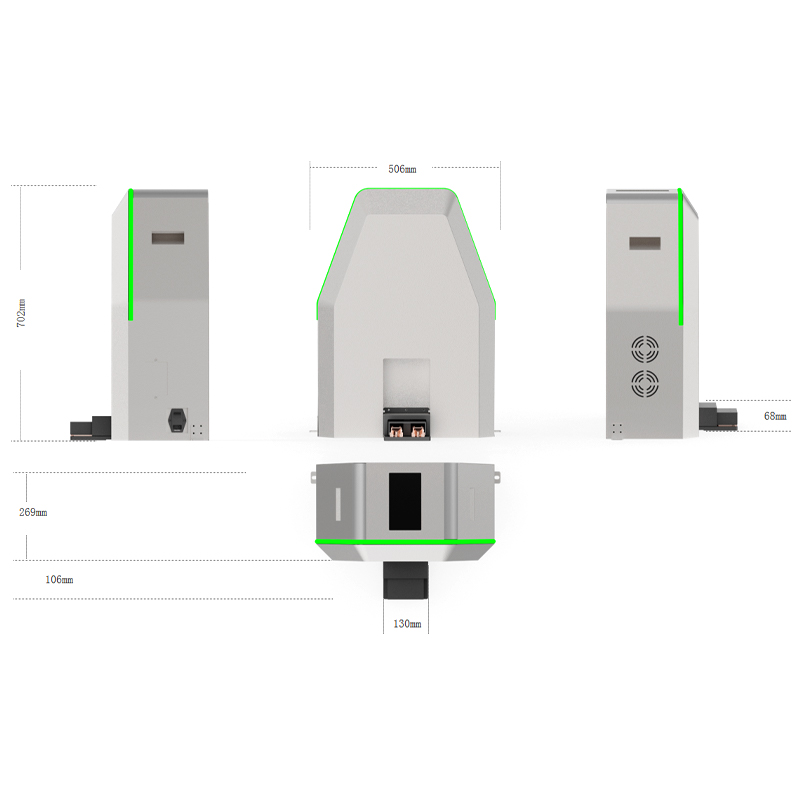

Technical Specifications

Specification

CSE（ International Special Version）

Input AC Voltage

China：220V±10%50HZ

Japan：100/200V%50Hz

Some EU Countries：230V%50Hz

America 110V%60Hz

Input Rate

<2KW

Output DC Voltage

12V~58.4V

Maximum Output Current

20A

Output Voltage Error

±0.5V

Output Current Error

±0.5A

Output Voltage

Dynamic Adjustment Of Output Voltage

Output Current

Dynamic Adjustment Of Output Current

Overcurrent Protection

Support

Over Temperature Protection

Support

Wireless Communication

Dual-band 02.4G/5G，IEEE802.11b/g/n

Human-Computer Interaction

Touch LCD

Status Indication

Three Color LED Indicator

Charging Plug

Support Anti Reverse Connection And Good Contact Detection

Short Circuit Protection

2P 20A Leakage Protector

Working Temperature

-5℃~+50℃

Weight

23kg

Links to application examples

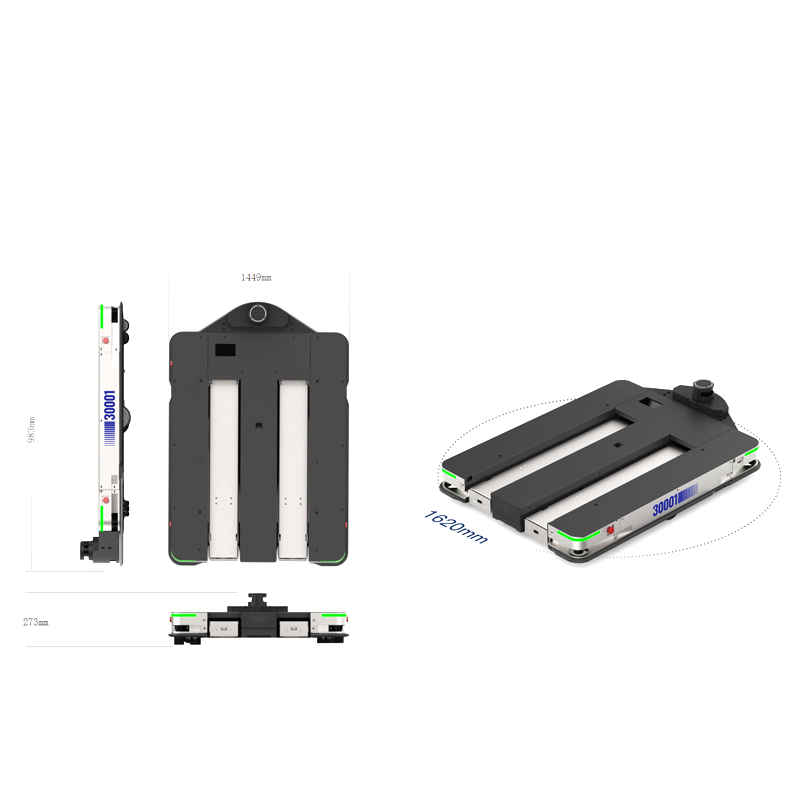

Pallet size adaptation

Serial No Parameter label Description（unit：mm）
1 W1 ≤190
2 W2 700≤W2≤970
3 L ≤1200
4 H Under the condition of 95~105: the maximum load is 800kg

Tuskrobots

As China pallet handling robot charging station manufacturers and pallet handling robot charging station factory, Tuskrobots is committed to empowering intelligent logistics in smart factories, making handling simpler and more efficient.It has launched a globally unique and innovative intelligent robot product that is highly adaptable to international standard pallets for conveying and picking. Tuskrobots always insists on serving customers and pursuing customer value, sparing no effort to improve project delivery and after-sales service capability. We adhere to the customer-oriented concept with real actions, and we also continuously improve ourselves with customer feedback. To match customer usage scenarios and customer requirements, there are a variety of service products of Tuskrobots products and systems for customization or selection in the after-sales stage. Choose the service plan that suits you, we will provide service of high quality.

  • 0+

    R&D Patents

  • 0+

    R&D and Technical
    Staff

  • 0%

    Market Growth Rate

  • 0+

    Global Network
    Coverage

China Source Factory

  • Foshan

  • Foshan

  • Foshan

  • Beijing

  • Hangzhou

  • Shanghai office

  • Shanghai

  • Shanghai

  • Chengdu

  • Chengdu

  • Chengdu

  • Chongqing

Certificate of Merit

The company has received a number of patent qualifications and honorary awards.

Related Products

From The Blog

Provide you with the latest enterprise and industry news.

Industry Knowledge Extension

Provide you with the latest Industry knowledge about pallet handling robot charging station.

What is pallet handling robot charging station

A pallet handling robot charging station is a designated area where pallet handling robots can go to recharge their batteries. These charging stations are often located near the robot's work area or home base and are designed to provide a convenient and efficient way for the robots to recharge their batteries during breaks or when their battery level becomes low.
The charging station typically includes a docking station where the robot can connect to a power source, usually an electrical outlet. The charging station may also include sensors that detect when the robot is in position and initiate the charging process automatically. This allows the robot to continue working without interruption, ensuring maximum productivity.
Pallet handling robots are often used in manufacturing and logistics operations to move pallets of goods around the warehouse or production facility. These robots can significantly increase efficiency and reduce the need for manual labor, but they require a reliable source of power to operate. The charging station provides a convenient and reliable way to ensure that the robots remain operational and productive throughout the day.

Features of pallet handling robot charging station

The specific features of a pallet handling robot charging station can vary depending on the manufacturer and the intended use. However, here are some common features that may be included:
1. Docking station: The charging station typically includes a docking station where the robot can park and connect to a power source.
2. Power supply: The charging station is typically connected to a reliable power source that provides the required voltage and current to recharge the robot's batteries.
3. Charging control system: The charging control system manages the charging process, ensuring that the batteries are charged safely and efficiently.
4. Charging status indicators: The charging station may include visual or audible indicators that show the charging status of the robot's batteries.
5. Automatic charging: Many charging stations are designed to automatically initiate the charging process when the robot parks in the docking station. This helps to ensure that the robot is always fully charged and ready to work.
6. Safety features: The charging station may include safety features such as automatic shutdown in case of power surges or overheating.
7. Remote monitoring: Some charging stations may include remote monitoring capabilities, allowing managers to track the charging status of multiple robots from a central location.
8. Compatibility: The charging station may be designed to work with a specific brand or model of robot, or it may be compatible with a variety of robots from different manufacturers.
9. Durability: The charging station may be designed to withstand the rigors of a warehouse or manufacturing environment, with features such as rugged construction and weather resistance.
Overall, the pallet handling robot charging station is an essential component of any automated material handling system, ensuring that the robots remain operational and productive throughout the day.

Advantages of pallet handling robot charging station

The pallet handling robot charging station offers several advantages to the user, including:
1. Increased efficiency: By providing a convenient and reliable way to recharge the robot's batteries, the charging station allows the robot to work for longer periods without interruption, which can significantly increase productivity.
2. Reduced downtime: The automatic charging feature of the charging station ensures that the robot is always charged and ready to work when needed, reducing downtime and maximizing uptime.
3. Improved safety: By automatically shutting down in case of power surges or overheating, the charging station helps to ensure that the robot and the charging system remain safe and operational.
4. Lower maintenance costs: The charging station can help to extend the life of the robot's batteries, reducing the need for costly battery replacements or repairs.
5. Scalability: The charging station can be designed to accommodate multiple robots, making it easy to scale the system as the facility's needs change.
6. Cost-effectiveness: The charging station can be a cost-effective solution for powering and recharging pallet handling robots, particularly when compared to other types of power sources, such as fuel-powered generators.
7. Environmentally friendly: By using electricity as the power source, the charging station can be a more environmentally friendly option than other types of power sources, such as fossil fuels.
Overall, the pallet handling robot charging station can help to optimize the performance of an automated material handling system, increasing efficiency, reducing downtime, and lowering maintenance costs.
