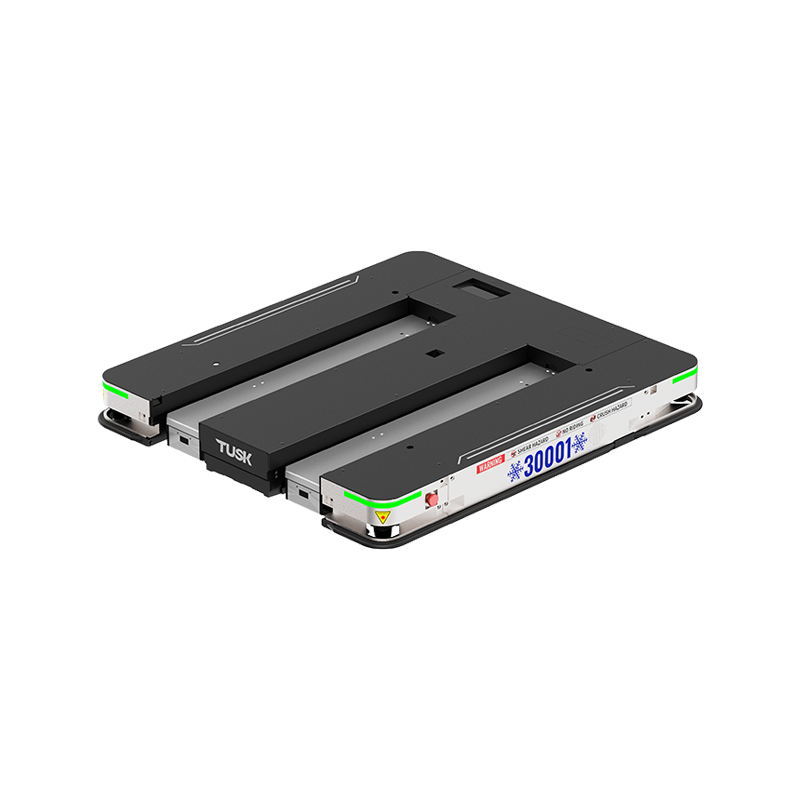

E10(Arctic)

  • E10(Arctic)
  • E10(Arctic)

E10(Arctic)

  • Hot & Low Temperature Operation Operating temperature -20℃ - 30℃.
  • High Temperature Difference Suitable for the temperature difference of 30℃.
  • Multiple Waterproof Structure and electronic devices multiple waterproof.

Project

Specifications

E10(Arctic)

E10-SLAM(Arctic)

Basic Parameters

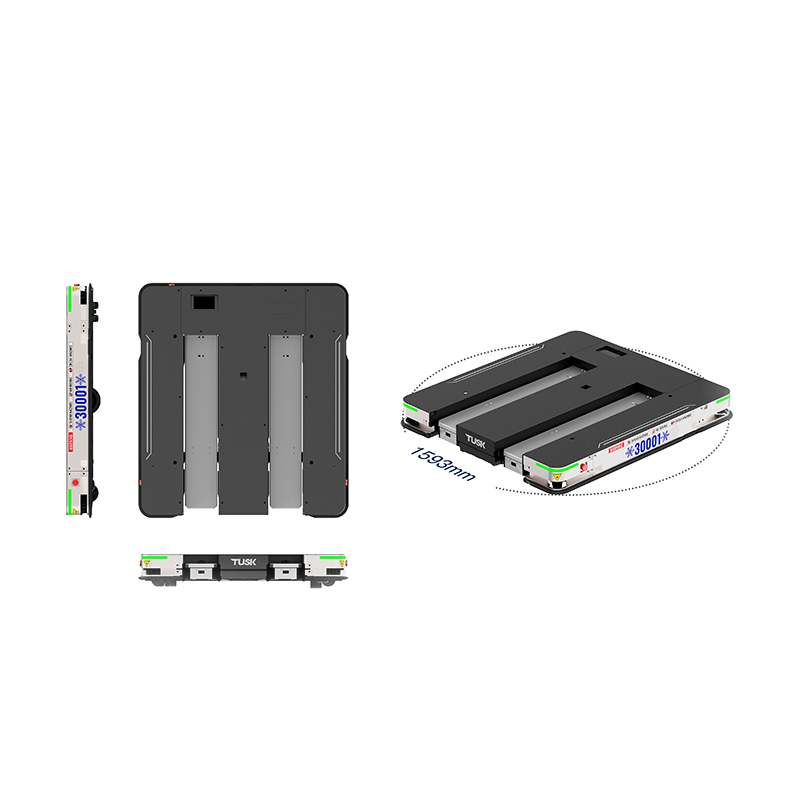

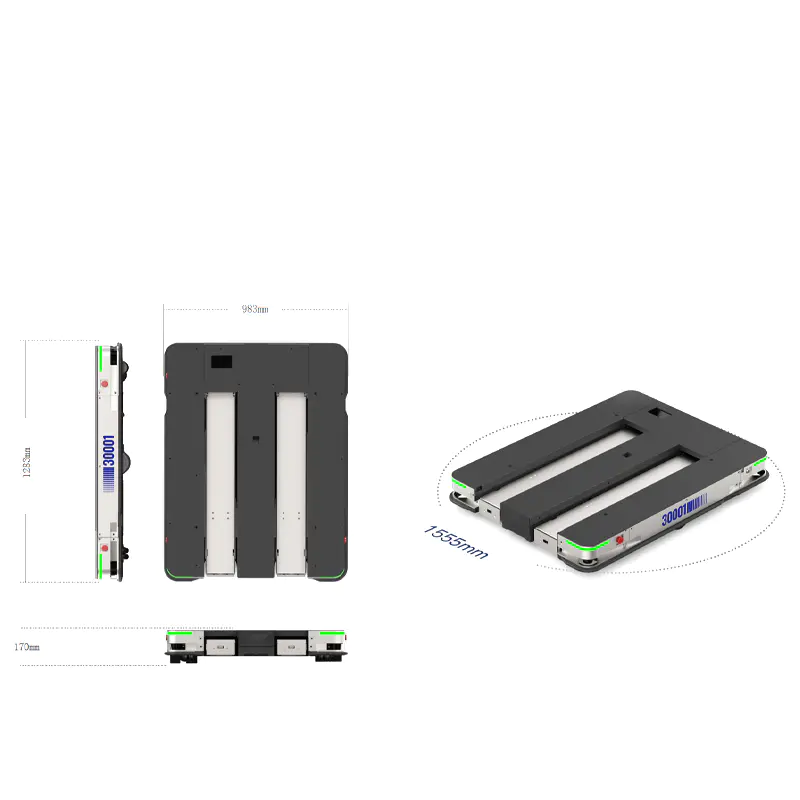

Size(mm)

1233x1102x170

1399x1102x170 (SLAM component can be elevated)

Rated Load (kg)

1000

Self-Weight (kg)

323

333

Fork Height (mm)

90(7mm downward floating height with loading)

Fork Stretch Out Max Limit (mm)

1400

Fork Max Lifting Height (mm)

≤330

Display Screen

5 inches

Telecommunication Modes

Default WIFI version: Support dual-band 2.4G/5G, IEEE802.1 lb/g/n (-5G version support 5G communication)

Safety Protection

Obstacle Avoidance Protection

Front Dual Laser + Rear Laser Sensor, 360° Obstacle Avoidance Detection

Detection Distance of Front Laser(m)

0-3

Mechanical Protection

Emergency stop button. Reset button, A protection strip around the whole vehicle body

Caution Function

With voice and photoelectric alarm functions

Fork tip protection

Photoelectric sensor detection distance≤100mm, collision switch

Movement

Capability

Navigation Mode

DM code

SLAM + DM code Dual Navigation

Maximum Speed (Full Load/Empty Load)(m/s)

2.0/1.5

Rated Acceleration(m/s²)

1

Stop Accuracy

±5mm /±1°

±20mm /±2°

Movement Mode

Two-wtieel differential

Ground Adaptation Gap Slope Step

40mm(Gap)/4°(7%)(Slope)/15mm(Step)

Maximum Slope Gradient for Fork Arm Extension

2°(3.5%)

Lithium Battery Performance

Rated Voltage/Capacity

51.2V/30AH

Battery Life

The times of fully charging: 1500 times (The battery capacity is guaranted to be more than 70% of the new battery)

Battery Endurance/Charging Time

≥6H/≤2H

Battery Type

LFP

Environment

Operating temperature(°C)

-10-50

Temperature Variance(°C)

≤30

Pallet Requirement

The Width of W1 and W2 (mm)

W1≤160, 600≤W2≤800

Pallet Length (mm)

≤1400

≤1300

Vertical Entry Clearance(mm)

95-130



Links to application examples

Pallet size adaptation

Specifications
Parameters
Types
Inner Width of
Slots W1(mm)
W1≤160
Outer Width of Slots W2(mm)
W2≥600
Inner Pallet
Height H(mm)
95≤H≤130
Pallet Length
L(mm)
≤1400(DM Code Version)
≤1300 (SLAM Version)
