Project |
Specifications |

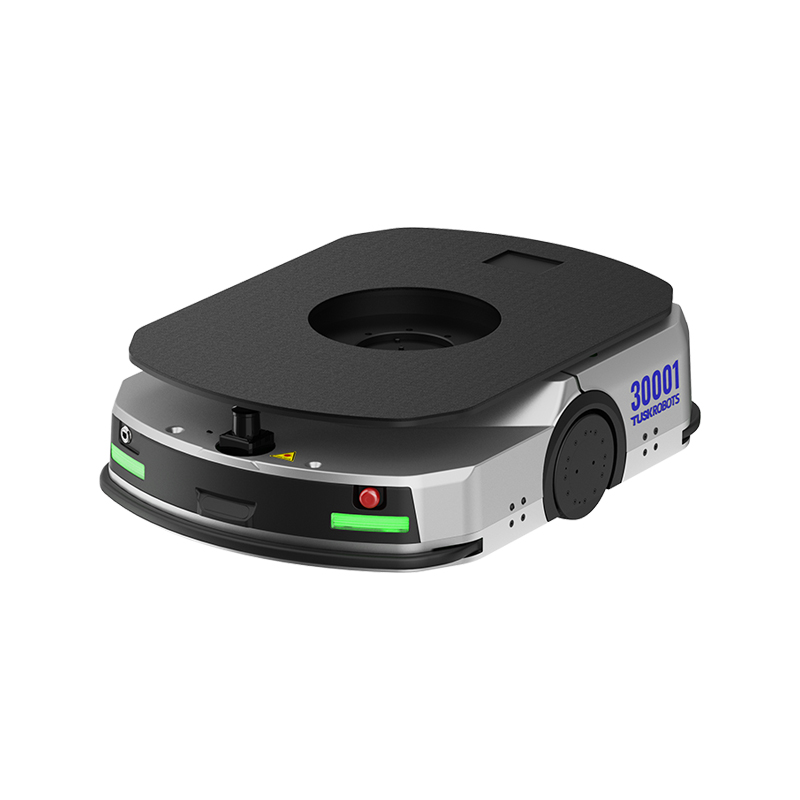

C06 |
C06C |

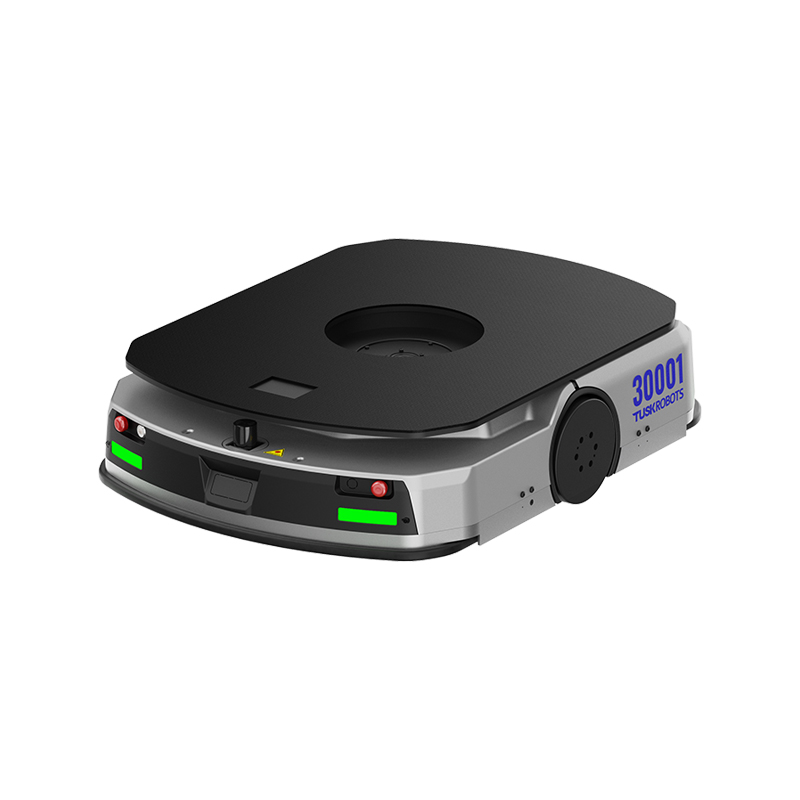

C10 |
C10C |

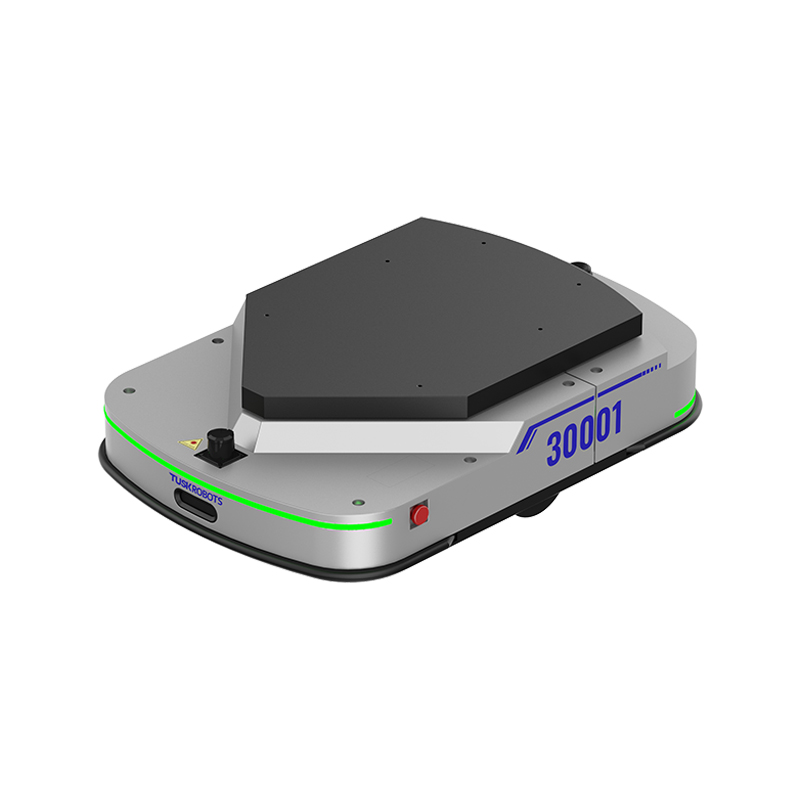

CR10 |
CR10C |

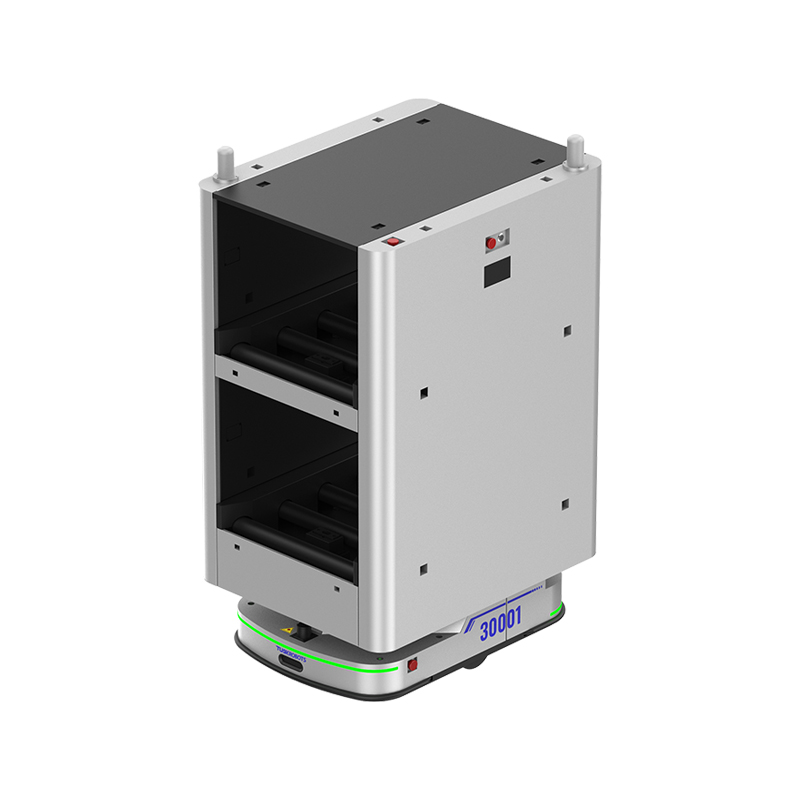

CR10-BG |
CR10C-BG |
Basic Parameters |
Rated Load(kg) |
600 |
1000 |
1000 |
1000 |
||||
Overall Size(mm) |
950x650x250 |
1150x820x260 |
950x650x195 |
950*750*1470 (without warning lights) |
|||||
Rotation Diameter(mm) |
965 |
1201 |
1000 |
1000 |
|||||
Lifting Height(mm) |
60 |
60 |
\ |
\ |
|||||
Ground Clearance(mm) |
25 |
25 |
25 |
25 |
|||||
Lifting Plate Size(mm) |
850x600 |
1030x770 |
\ |
\ |
|||||
Lifting method |
Electric lifting |
Electric lifting |
\ |
\ |
|||||
Self-weight(kg) |
130 |
180 |
100 |
100 |
|||||
Communication method |
Default WIFI dual-band, 5G optional |
Default WIFI dual-band, 5G optional |
Default WIFI dual-band, 5G optional |
Default WIFI dual-band, 5G optional |
|||||
Navigation Mode |
DM Code |
DM Code + Laser SLAM |
DM Code |
DM Code + Laser SLAM |
DM Code |
DM Code + Laser SLAM |
DM Code |
DM Code + Laser SLAM |
|
LCD Display |
Equipped |
Equipped |
Equipped |
Equipped |
|||||
Safety Protection |
Front Protection |
270° Laser |
250° Laser |
270° Laser |
270° Laser |
||||
Rear Protection |
180° Laser |
180° Laser |
210° Laser |
210° Laser |
|||||
Collision Strip Detection |
360° Detection |
360° Detection |
360° Detection |
360° Detection |
|||||
Emergency Stop Button |
One at the front and one at the rear |
One at the front and one at the rear |
Two sides & rear, a total of three |
Two sides & rear, a total of three |
|||||
Lighting Alerts |
Equipped |
Equipped |
Equipped |
Equipped |
|||||
Voice Prompts |
Equipped |
Equipped |
Equipped |
Equipped |
|||||
3D Obstacle Avoidance |
Optional |
Optional |
Optional |
Optional |
|||||
Movement Capability |
Maximum Operation Speed (Empty Load/Full Load)(m/s) |
2.0/1.5 |
1.8/1.5 |
2.0/1.5 |
2.0/1.5 |
||||
Rated Acceleration (UnloadedXm/s2) |
1 |
1 |
1 |
1 |
|||||
Stop Angle Accuracy |
±5mm / ±1° |
±20mm / ±2° |
±5mm / ±1° |
±20mm / ±2° |
±5mm / ±1° |
±20mm / ±2° |
±5mm / ±1° |
±20mm / ±2° |
|
Stop Position Accuracy |
30mm(Gap) / 3°(5%)(Slope) / 10mm(Step) |
30mm(Gap) / 3°(5%)(Slope) / 10mm(Step) |
30mm(Gap) / 3°(5%)(Slope) /10mm(Step) |
30mm(Gap) / 3°(5%)(Slope) / 10mm(Step) |
|||||
Lithium Battery Performance |
Rated Voltage/Capacity |
51.2V/24AH |
51.2V/40AH |
51.2V/30AH |
51.2V/30AH |
||||
Number of Charge Cycles |
Full charge and discharge: 2000 cycles (Battery capacity remains above 70% of new battery |
Full charge and discharge: 2000 cycles (Battery capacity remains above 70% of new battery |
|||||||
Endurance/Charging Time |
>8H / <2H |
>8H / <2H |
>8H/<2H |
>8H / <2H |
|||||
Battery Type |
LFP |
LFP |
LFP |
LFP |
|||||
Environment |
Operating Temperature(℃) |
0~45 |
0~45 |
0~45 |
0~45 |
As China C-series Robot manufacturers and C-series Robot factory, Tuskrobots is committed to empowering intelligent logistics in smart factories, making handling simpler and more efficient.It has launched a globally unique and innovative intelligent robot product that is highly adaptable to international standard pallets for conveying and picking. Tuskrobots always insists on serving customers and pursuing customer value, sparing no effort to improve project delivery and after-sales service capability. We adhere to the customer-oriented concept with real actions, and we also continuously improve ourselves with customer feedback. To match customer usage scenarios and customer requirements, there are a variety of service products of Tuskrobots products and systems for customization or selection in the after-sales stage. Choose the service plan that suits you, we will provide service of high quality.
