Home / Product / E10

E10

  • E10
  • E10
  • E10
  • E10

E10

  • Standard Pallet Available for 1000*1200mm plastic pallet handling.
  • Narrow Aisle The minimum width of the pallet handling aisle is 1800mm.
  • High-level Safety 360° laser obstacle avoidance detection, cargo detection, etc.
  • Equipment Docking Multi-equipment types of docking support, such as lift, elevator, mechanical arm, etc.
Contact Us
Project
Specifications
E10（DM Code Version）
E10-SLAM（SLAM + DM Code Version）
Basic Parameters

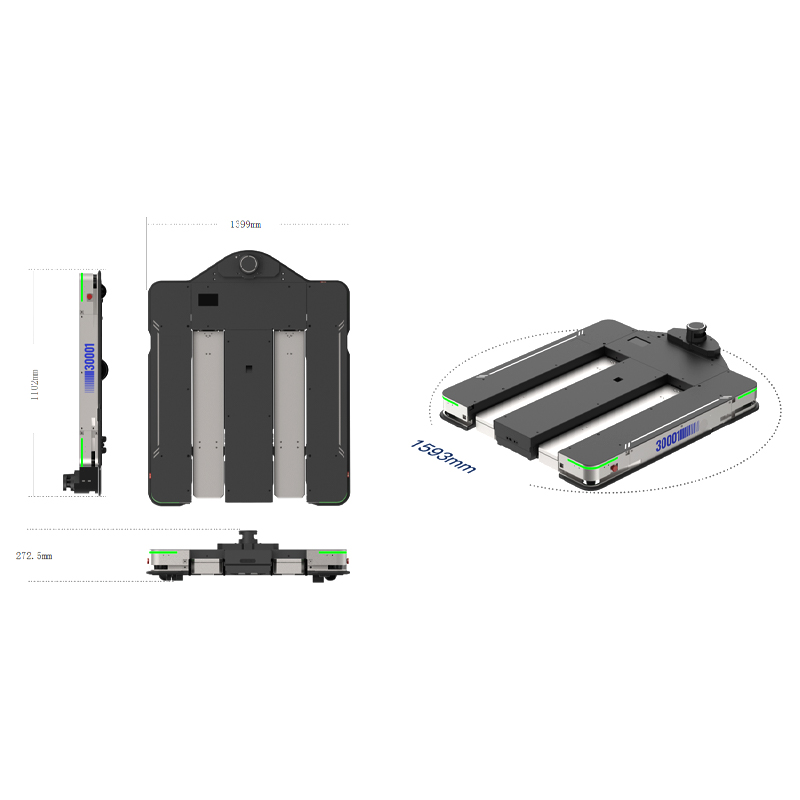

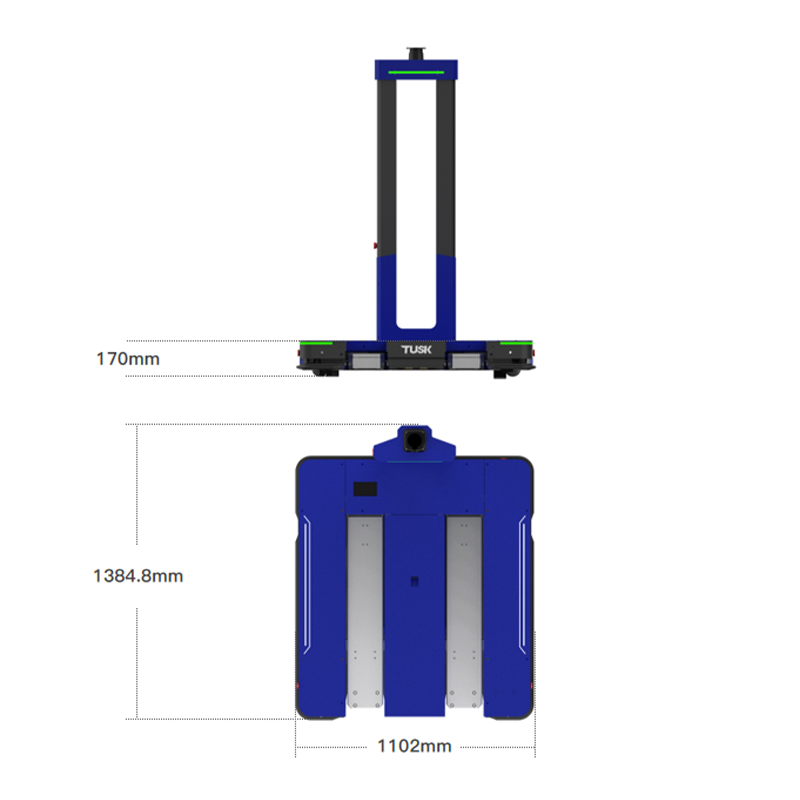

Size(mm)
1233x1102x170
1399x1102x272.5
Rated Load (kg)
1000
1000
Self-Weight (kg)
316.6
320

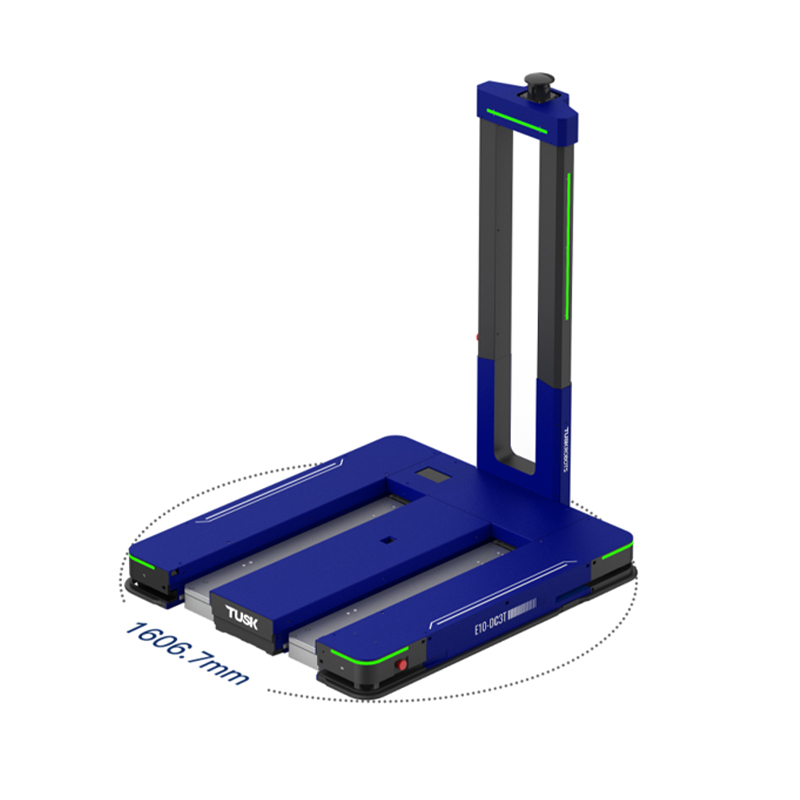

Rotation Diameter (mm)
1593
1593
Fork Height (mm)
90
90
Fork Stretch Out Max Limit (mm)
1400
1400
Fork Max Lifting Height (mm)
≤330
≤330
Display Screen
5 inches
5 inches
Telecommunication Modes
Default WIFl version: Support dual-band 2.4G/5G, IEEE802.11b/g/n
(-5G version support sG communication)
Default WIFl version: Support dual-band 2.4G/5G, IEEE802.11b/g/n
(-5G version support 5G communication)
Safety Protection
Obstacle Avoidance Protection
Front laser sensors + Rear laser sensors,
360° obstacle avoidance detection
Front laser sensors + Rear laser sensors,
360° obstacle avoidance detection
Three-dimensional Protection
Forward-facing stereo camera visual obstacle avoidance
Forward-facing stereo camera visual obstacle avoidance
Detection Distance of Front Laser
≤3m
≤3m
Mechanical Protection
An emergency stop button, Reset button,
A protection strip around The whole vehicle's body
An emergency stop button, Reset button,
A protection strip around The whole vehicle's body
Caution Function
with voice and photoelectric alarm functions
with voice and photoelectric alarm functions
Navigation Mode
DM code
SLAM + DM code Dual Navigation
Max Speed
1.5m/s (Zero Loaded) 1 1.2m/s (fully loaded)
1.5m/s (Zero Loaded) / 1.2m/s (Fully loaded)
Robot Stop Accuracy
±5mm /±1°
±10mm /±1°
Movement Mode
two-wheel differential
two-wheel differential
Maximum Robot Ground Adaptability
40mm(Gap)/3.3°(Slope)/15mm(stair-step)
40mm(Gap)/3.3°(Slope)/15mm(Stair-step)
Maximum Fork Ground Adaptability
10mm(Gap)/1.9°(Slope)/5mm(stair-step)
10mm(Gap)/1.9°(Slope)/5mm(Stair-step)
Lithium Battery
Performance
Rated Voltage/Capacity
51.2V/30AH
51.2V/30AH
Battery Lite
The times of full charging: 2000 times
(The battery capacity is guaranted to be more than 70% of the new battery)
The times of full charging: 2000 times
(The battery capacity is guaranteed to be more than 70% of the new battery)
Battery Endurance/Charging Time
≥8H/≤2H
≥8H/≤2H
Battery Type
LFP
LFP
Links to application examples

Pallet size adaptation

Specifications
Parameters
Types
Inner Width of
Slots W1(mm)
W1≤160
Outer Width of Slots W2(mm)
W2≥600
Inner Pallet
Height H(mm)
95≤H≤130
Pallet Length
L(mm)
≤1400(DM Code Version)
≤1300 (SLAM Version)
