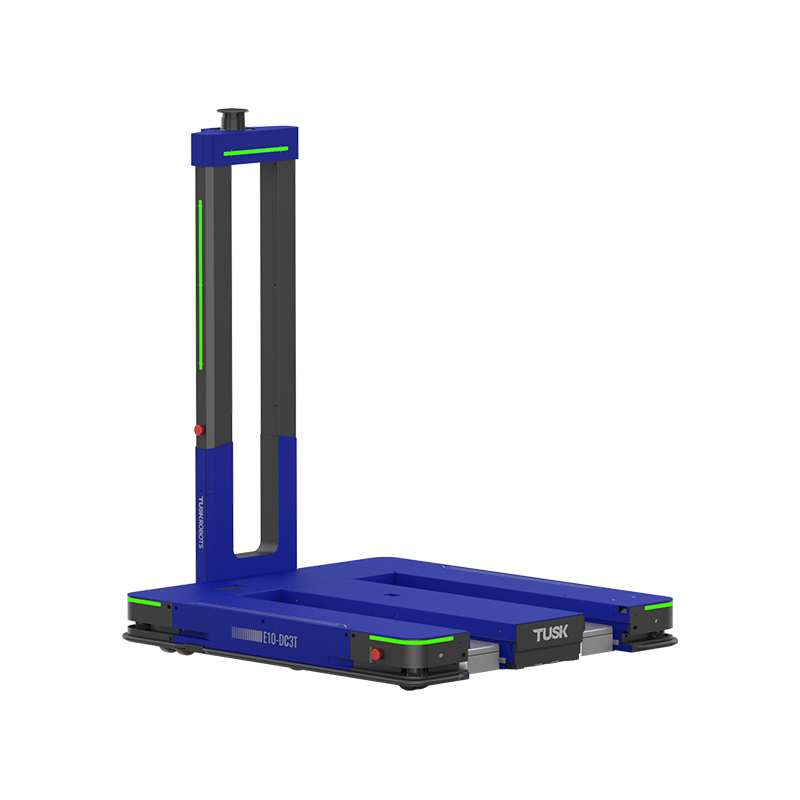

E10-SLAM（SLAM + DM Code Dual Navigation Version）

No Assistance RequiredPallet handling directly by fork without any auxiliary equipment.
Load StabilityHigher stability by reason of loading with the vehicle body rather than the fork, no shaking.
High Load RatioCan load four times of its own weight.
High Adaptability Support dual navigation switching between laser SLAM and DM code, adapt to multiple working scenes.
Automatic ControlAutomatic flexible intelligent obstacle avoidance control.
Audible And Visual AlarmSupport high position light and voice prompt.
Multiple CommunicationSupport WIFI/5G network communication and seamless roaming.

Project	Standard	E10 SLAM Dual Navigation
Basic parameter	Size(mm)	1384.8×1102×170（Include The Protection Strip），The Height Of The Slam Component Is Adjustable；
	Maximum Lifting Weight (kg)	1000
	Self-Weight (kg)	330 kg
	Rotation Diameter (mm)	1606.7
	Fork Height (mm)	90（7MM Downward Floating Height With Loading）
	Maximum Lifting Height (mm)	≤329
	Pallet Opening Height (mm)	95-130
	Display Screen	5 Inches
	Telecommunication Modes	Default WIFI version: Support Dual-Band 2.4G/5G, IEEE802.11b/g/n (-5G Version Support 5G Communication)
Safety Protection	Obstacle Avoidance Protection	Front Double Laser Sensors + Rear Double Laser Sensors, 360°Obstacle Avoidance Detection
	Detection Distance Of Front Laser	≤3m
	Mechanical Protection	Emergency Stop Button、Reset Button、A Protection Strip Around The Whole Vehicle Body
	Caution Function	With Voice And Photoelectric Alarm Functions
Movement Capability	Navigation Mode	SLAM + DM Code Dual Navigation
	The Speed With Zero Load	0-1.5m/s
	The Speed With Fully Loaded	0-1.2m/s
	Rated Acceleration	1m/s²
	Stop Accuracy	±20mm /±2°
	Movement Mode	Two-Wheel Differential
	Maximum Clearance	40mm
	Maximum Slope	3.3°
	Maximum Step	15mm
	Maximum Slope When The Fork Extension Reach To The Maximum	1.9°
Lithium Battery Performance	Rated Voltage	51.2V
	Capacity	28AH
	Battery Life	1500 Times (The bAttery Capacity Is Guaranteed To Be More Than 70% Of The New Battery)
	Battery Endurance	≥8H
	Charging Time	≤2H
	Battery Type	LFP

Pallet size adaptation

Serial No	Parameter label	Description（unit：mm）
1	W1	≤190
2	W2	700≤W2≤970
3	L	≤1200
4	H	Under the condition of 95~105: the maximum load is 800kg
